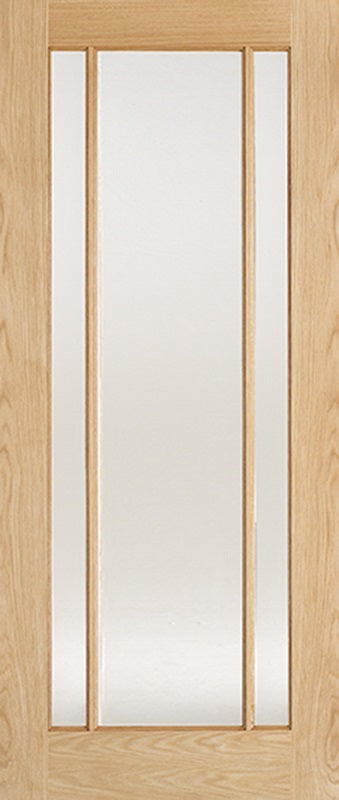

Oak Lincoln Clear Glazed Bifolding Doorset
Update your home with the stunning Oak Lincoln Clear Glazed Bifolding Doorset, featuring clear glazed panels and beautiful unfinished Oak detailing, this doorset will add a touch of elegance and modernity to any room. With its innovative bifolding design, enjoy the benefits of both natural light and privacy.

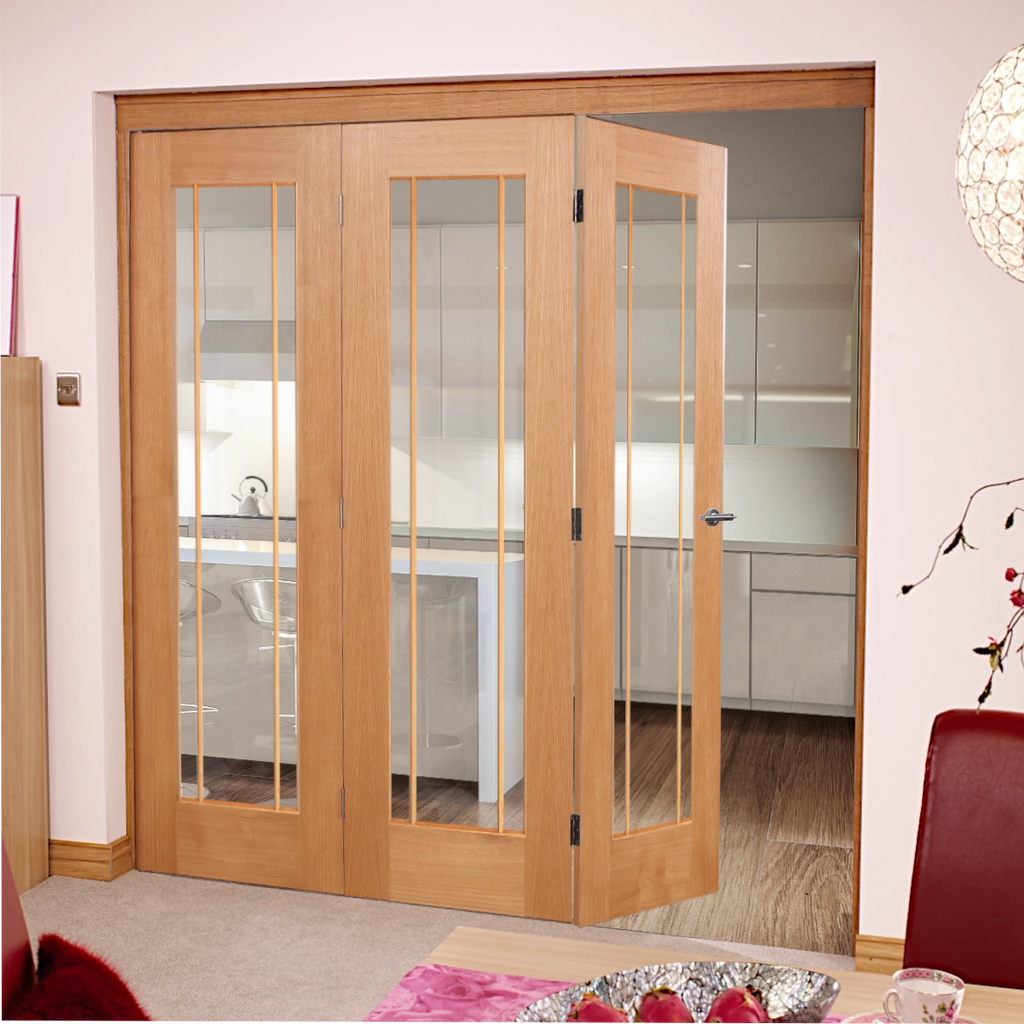

The Lincoln Oak folding room divider is available in 3 configurations and 3 door sizes, a 3 leaf, 4 leaf and a 5 leaf system. The Frame is supplied complete with the Top Track, Top Pivot, Apron Plate, Bottom Pivot and Chrome Hinges. There is no bottom frame or floor guide with this door set therefore the flooring can continue between rooms. The frame is supplied in unfinished oak and would require priming and painting on-site.
Notes for Installation
- No bottom frame is required, This system is top-hung only
- Maximum trimming allowed on each door edge is 5mm
- Doors are supplied unfinished ready for onsite finishing
- Doors available in 3 widths sizes 533mm/610mm/686mm
- The folding frame is supplied unfinished and ready for final finish

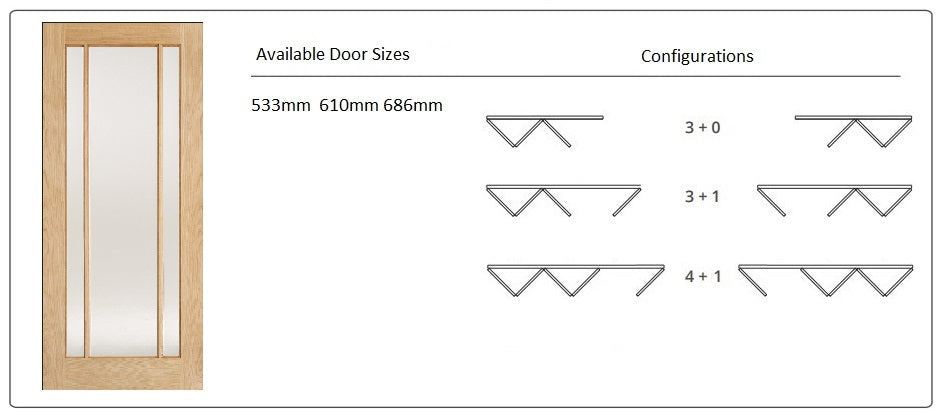

The Lincoln Bifold door set is available in the following door size options, 533mm / 610mm / 686mm
(External frame measurements will be 10mm smaller in height and 10mm smaller in width)

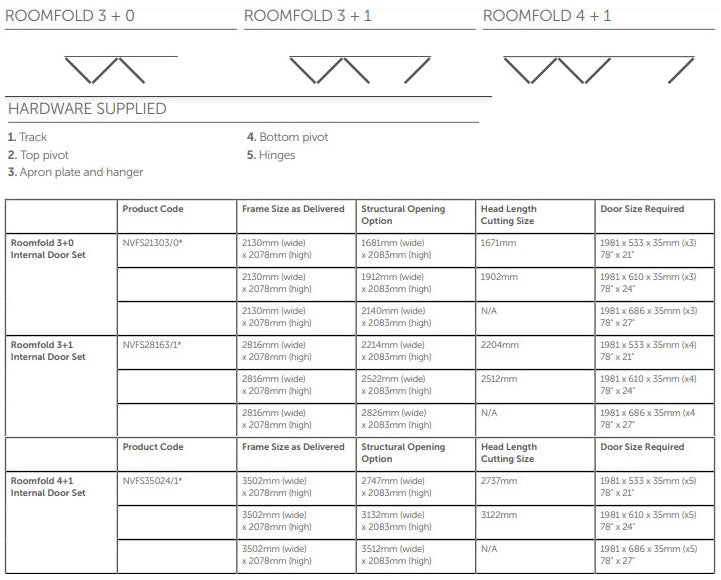

Structural Opening Sizes
Configurations (Structural Opening Size with 533mm Doors)
3+0 Configuration with 3x21" Doors - Overall Size 2083mm x 1681mm
3+1 Configuration with 4x21" Doors - Overall Size 2083mm x 2214mm
4+1 Configuration with 5x21" Doors - Overall Size 2083mm x 2747mm
Configurations (Structural Opening Size with 610mm Doors)
3+0 Configuration with 3x24" Doors - Overall Size 2083mm x 1912mm
3+1 Configuration with 4x24" Doors - Overall Size 2083mm x 2522mm
4+1 Configuration with 5x24" Doors - Overall Size 2083mm x 3132mm
Configurations (Structural Opening Size with 686mm Doors)
3+0 Configuration with 3x27" Doors - Overall Size 2083mm x 2140mm
3+1 Configuration with 4x27" Doors - Overall Size 2083mm x 2826mm
4+1 Configuration with 5x27" Doors - Overall Size 2083mm x 3512mm
Please be aware that the provided sizes are based on the subfloor level. If you plan to install the frames on top of a floor covering, you will need to adjust the frame's height accordingly during installation.
Please do not hesitate to contact us if you have any questions about this product or need help selecting the correct size for your opening.
