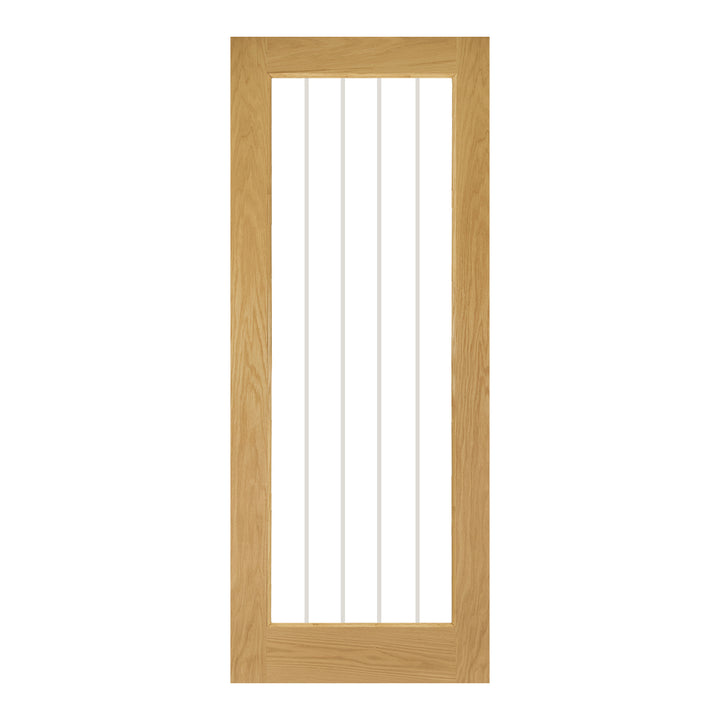

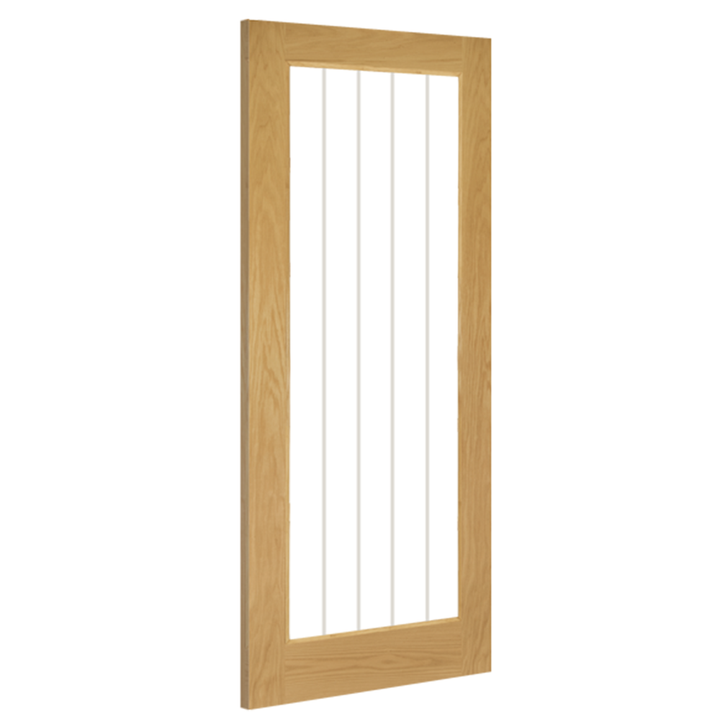

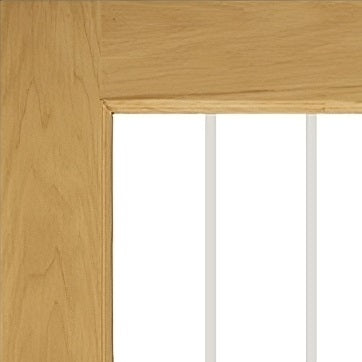

Ely Oak 1L Clear Glazed Room Divider Fully Finished
A Stylish room divider solution that uses a high-quality track, allowing doors to effortlessly fold and glide, the perfect solution for dividing two rooms, yet having the flexibility to create one large open space when required. Bi-folding doors offer a vast array of different options to choose from, you can choose from hundreds of styles of doors in many finishes allowing you to create the perfect harmonious space In your home.
Numerous configurations can be created to suit any space.
Top Hung System (No Bottom Track)
Our folding systems are a complete off-the-shelf solution allowing you to quickly and easily install your chosen configuration.
We have specially designed the track and bearings and put them through rigorous testing to ensure they can withstand the weight of the doors from the top hangers, as there is no bottom track allowing you to continue the floor covering directly through from room to room. The high-quality mechanisms ensure that your doors will effortlessly slide every single time, and will last for years to come.
Configurations (External Frame Dimensions with 610mm Doors)
2+0 Configuration with 2x24" Doors - Overall Size 2060mm x 1295mm
2+1 Configuration with 3x24" Doors - Overall Size 2060mm x 1908mm
3+0 Configuration with 3x24" Doors - Overall Size 2060mm x 1908mm
3+1 Configuration with 4x24" Doors - Overall Size 2060mm x 2521mm
2+2 Configuration with 4x24" Doors - Overall Size 2060mm x 2521mm
4+0 Configuration with 4x24" Doors - Overall Size 2060mm x 2521mm
Configurations (External Frame Dimensions with 686mm Doors)
2+0 Configuration with 2x27" Doors - Overall Size 2060mm x 1447mm
2+1 Configuration with 3x27" Doors - Overall Size 2060mm x 2136mm
3+0 Configuration with 3x27" Doors - Overall Size 2060mm x 2136mm
3+1 Configuration with 4x27" Doors - Overall Size 2060mm x 2825mm
2+2 Configuration with 4x27" Doors - Overall Size 2060mm x 2825mm
4+0 Configuration with 4x27" Doors - Overall Size 2060mm x 2825mm
Sliding Folding Mechanism
This bifold system is supplied complete with all fixings and sliding door gear, there is NO BOTTOM TRACK so the doors are hung from the top hangers only, this allows a seamless floor finish. Please note the measurements provided do not take into consideration any floor covering, we recommend you add the thickness of your floor covering to the height of the overall frame size unless you already have a floor covering down in which case please refer to the height measurement provided above.
Adjustment
Outer frame height can be adjusted by 10mm, this can be done once the frame has been installed allowing the perfect install. The frames may be supplied larger then the required size, in which case they can be trimmed on-site to suit your opening.
Delivery
Your doors will be delivered on our own vehicles or through a trusted carrier normally within 3-5 days. The standard delivery rate
to most areas is £35.00. The cost depends on the number of doors and delivery address. Correct shipping costs will be provided at checkout.
For more details you can view our delivery rates here.
Express Delivery
If you need express delivery then we can offer a next day delivery service on selective products, please call us on
01422 387331 and we will do our best to help.
Collection
Orders can be collected from store, or a local warehouse there is no charge for this service. Please select the collection option
in checkout. We will contact you to arrange a collection slot once your order is ready to be collected.
Gaurantee
Our doors are guaranteed for ten years from the date of the delivery. We are proud to stand by our doors,
and we have no hesitation in offering a conditional 10 Year guarantee against faulty materials or workmanship.
Should one of our doors be found to be defective upon delivery or develop a fault due to faulty materials or
workmanship within 10 Years of delivery, at our discretion we will offer the original purchaser the option of repair,
replacement or refund.
Read more about our 10 year gurantee, click here.
