Oak Worcester Clear Glazed Double Fire Rated Pocket Door Set

Oak Worcester Clear Glazed Double Fire Rated Pocket Door Set

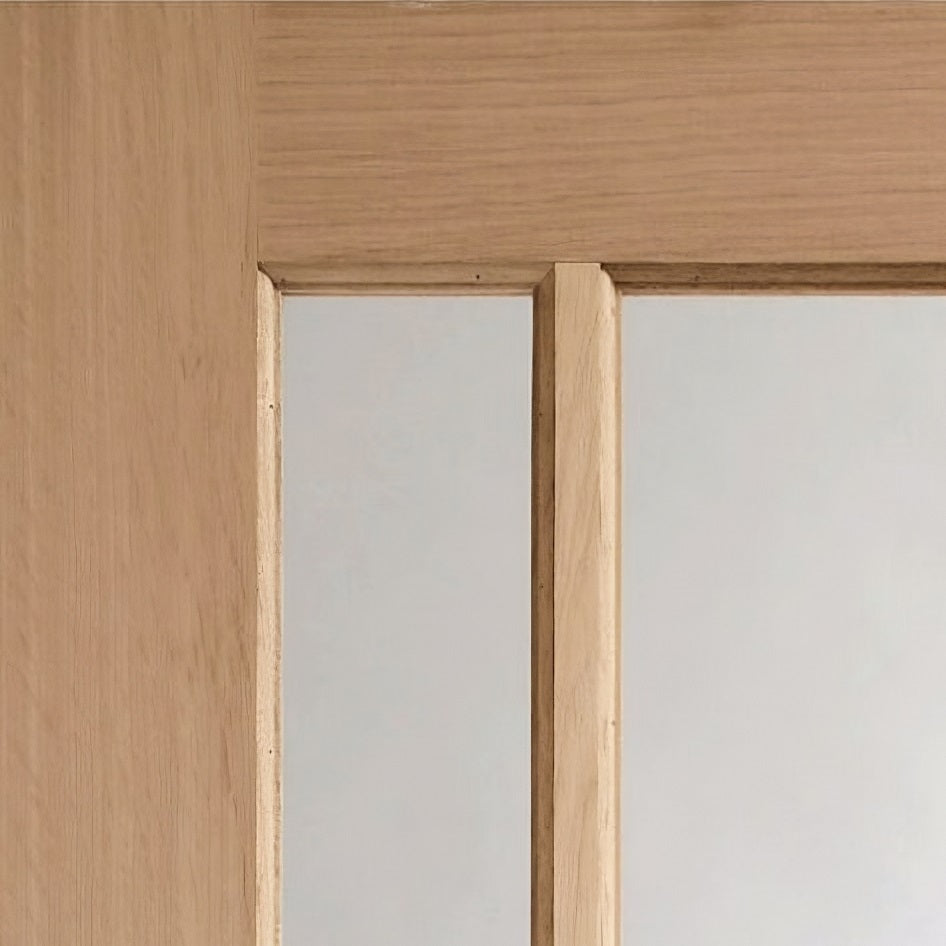

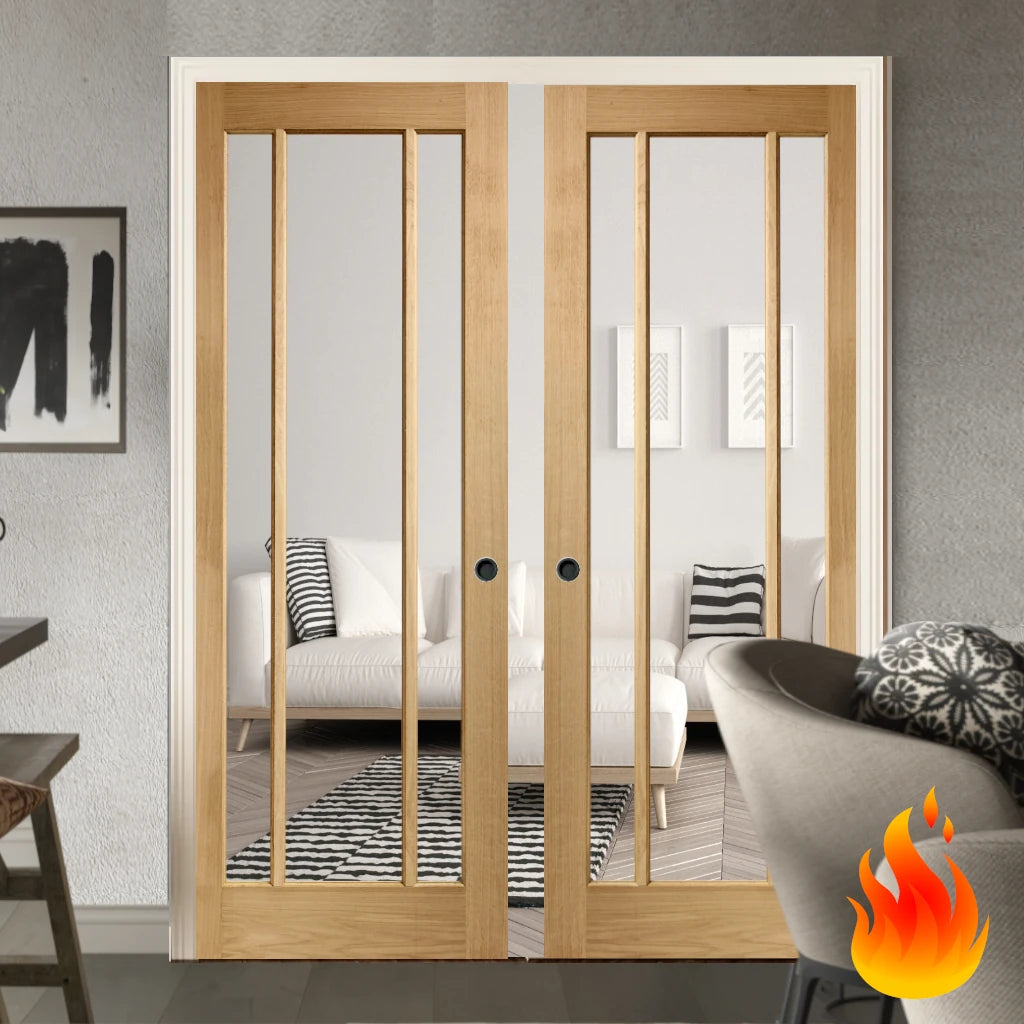

The Worcester Oak Sliding Fire Door system offers 30 minutes fire protection and will add a stylish touch to your home. The Worcester doors feature a 3 Light design and allow plenty of light to flood through the space.

The Classic Double Fire-rated Pocket Door System uses our high quality, comprehensively tested pocket door frame with specially designed high-density fire-resisting jambs and architrave.

Note: The frame is 70mm and requires two layers of 12.5mm fireboard on either side to give a finished wall thickness of 120mm.

Overall Frame Dimensions with Door Panel Sizes (Width x Height)

Available Sizes:

686 + 686 + 1981 Door Panel =  2816mm x 2061 mm Pocket Frame

762 + 762 x 1981 Door Panels = 3168mm x 2061 mm Pocket Frame

838 + 838 x 1981 Door Panels = 3320mm x 2061 mm Pocket Frame

Metric Sizes

726 + 726 x 2040 Door Panels = 2894mm x 2120mm Pocket Frame

826 + 826 x 2040 Door Panels = 3294mm x 2120mm Pocket Frame

WHAT'S INCLUDED IN THIS KIT:

• 2 x Oak Worcester Clear Glazed Fire Doors
• Architrave

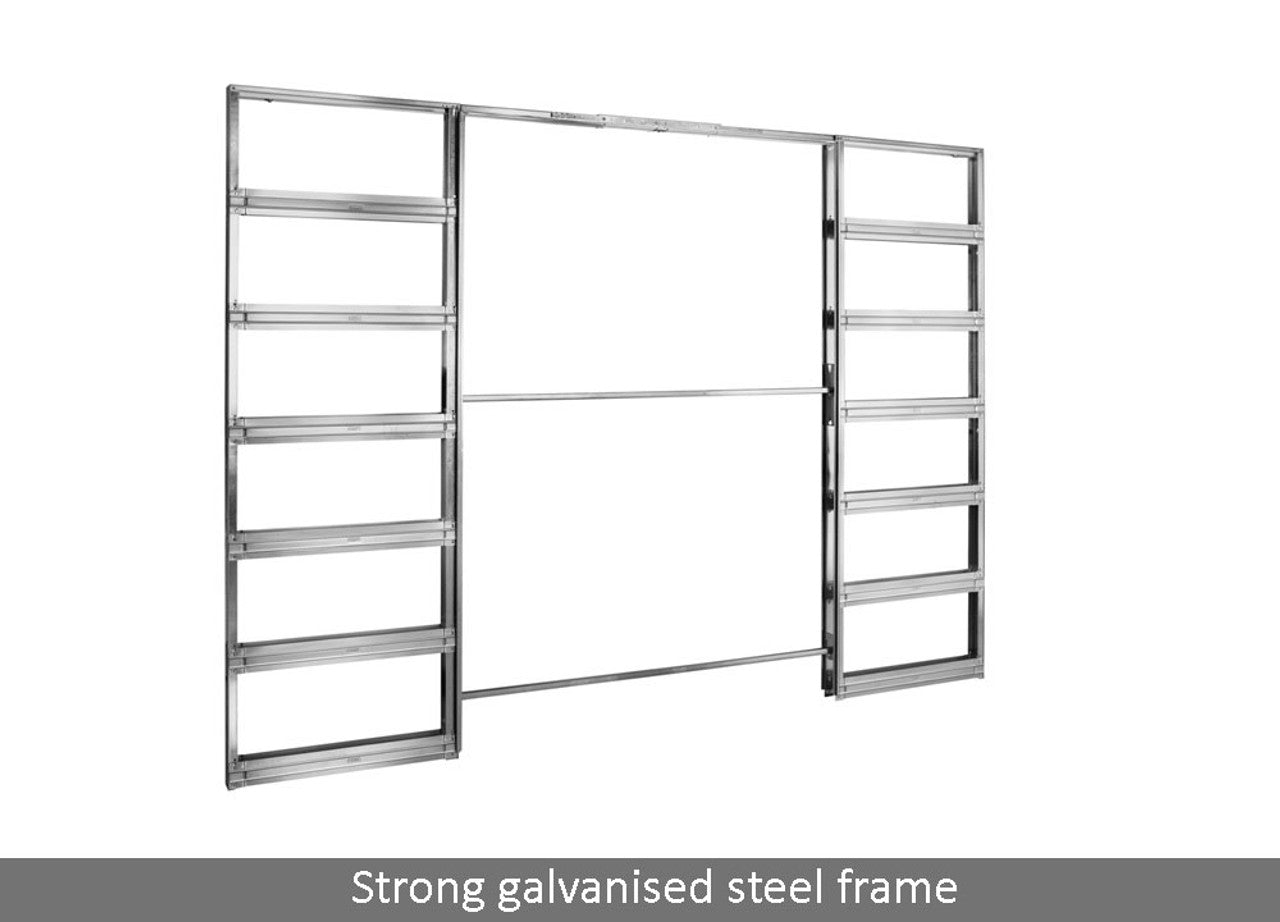

• Galvanised steel frame Strong galvanised steel frame
• Quick-click frame that assembles into a complete unit comprising of full pocket, track and doorpost

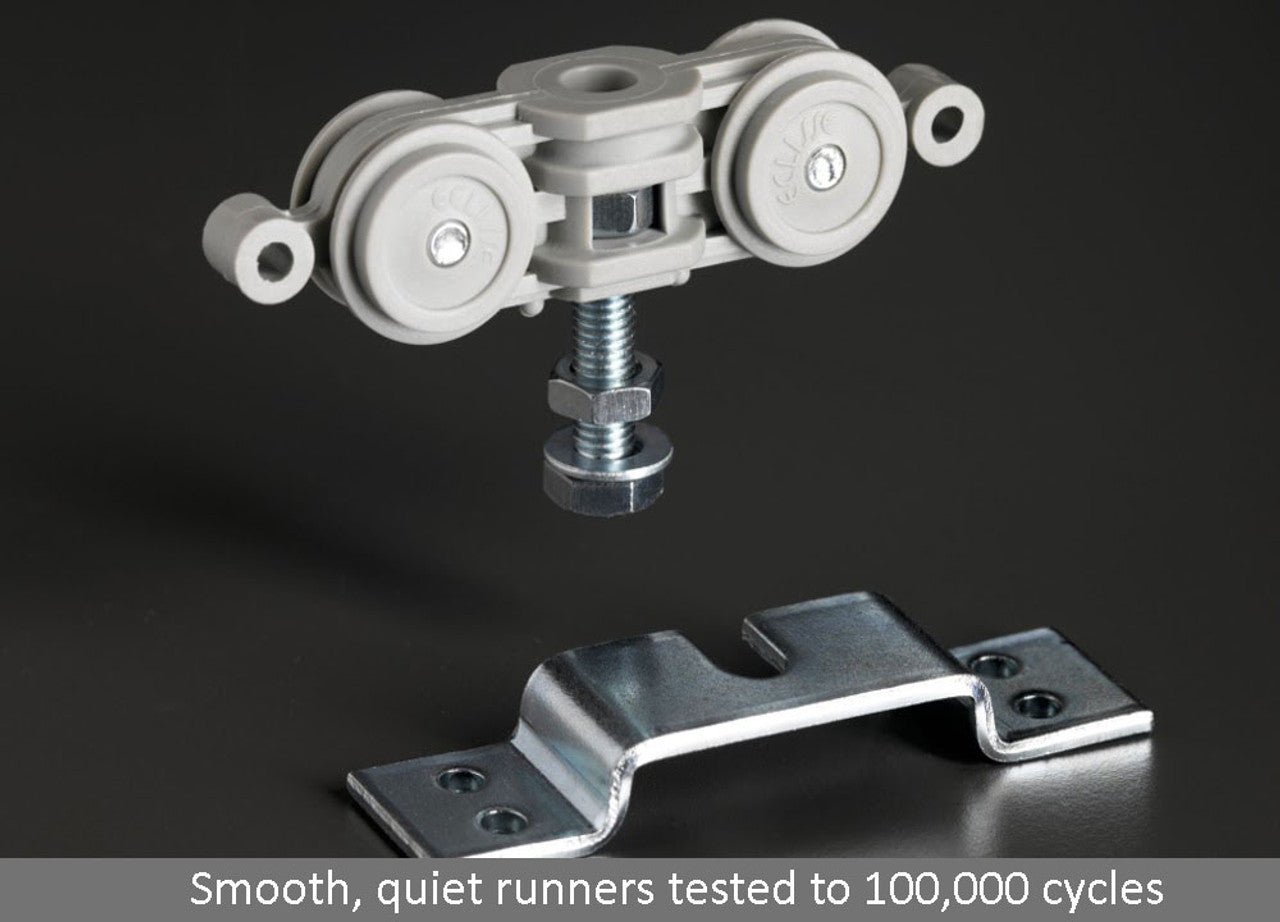

• Runners are tested to 100,000 cycles (that’s around 25 years of average use!)
• The extractable track can be extracted without having to break into the wall
• Front and rear door stops can be adjusted to determine how far the door protrudes from the pocket
• Metal anti-warp door profile slots into a channel in the underside of the door, not visible but ensuring that if your door warps it continues to slide smoothly.
• Self-centering door guide clicks into the frame and doesn't screw into the floor, so it is perfectly centered every time
• Even the screws to attach the plasterboard to the frame are included
• 15-year guarantee on the complete steel pocket system and runners

TECHNICAL:

• Frames can take up to 100kg Door Panels
• Finished wall thickness 120mm (frame size 70mm with 2 layers of 12.5mm fireboard required on either side)

JAMB KIT:

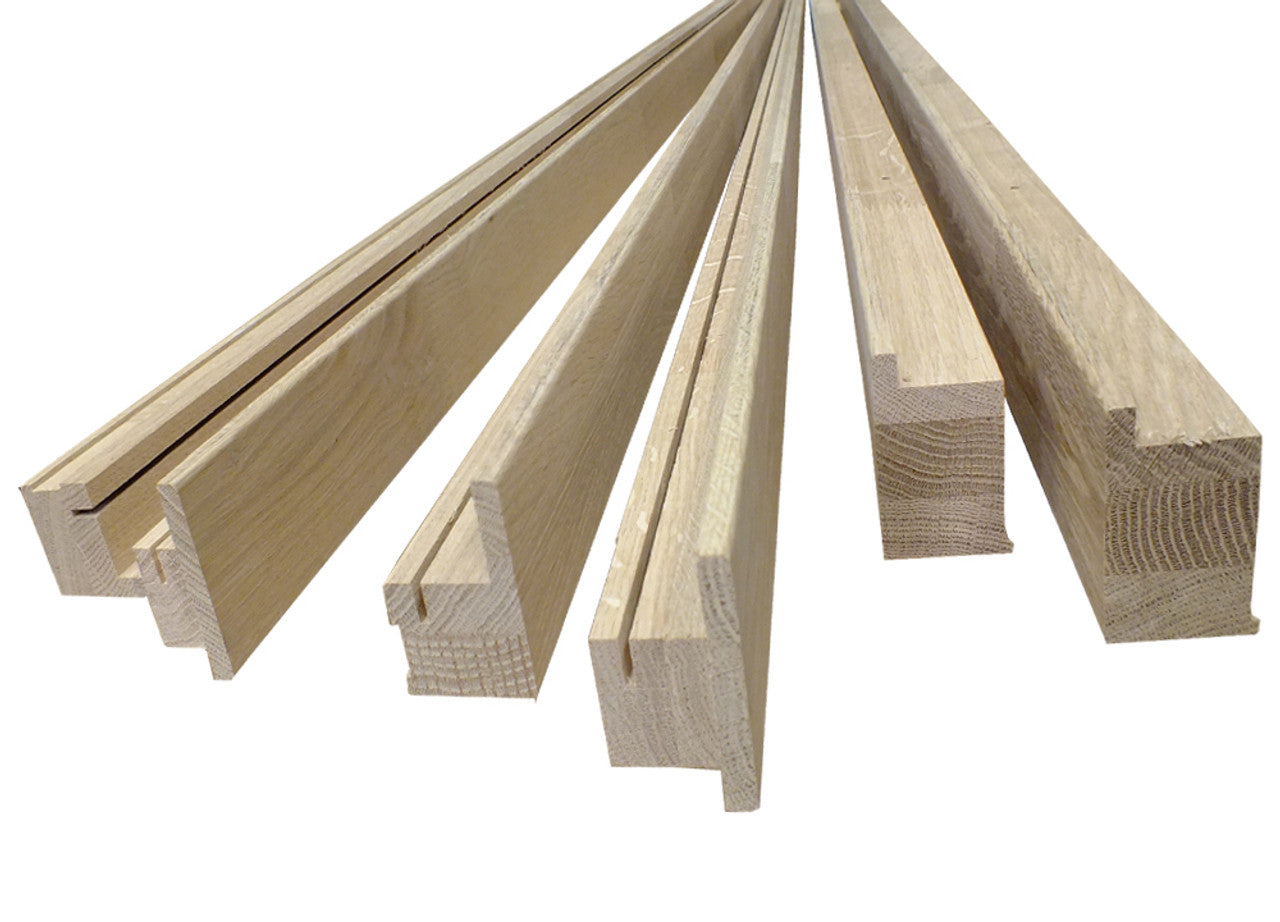

• The jambs with integrated architrave are manufactured from a high-density finger-jointed oak
• Intumescent strips are required to be fitted to the jambs and to the meeting stiles of the doors.
• 44mm FD30 Door and 12.5mm fireboard not included.

OPTIONAL ACCESSORIES:

• Back of the door self-closer  - the self-closing mechanism is an ingenious device, that fixes to the back of the door and allows the door to close by itself. Allows the door to close by itself, automatically - with no input from you!
• Can be installed retrospectively
• The system allows you to adjust the closing speed

 The independently fire-tested and certified Pocket Door System - Fire-Rated Double (FD30). Compatible and certified for use with the BIAS Soft-Close Anti-Slam

Before ordering please refer to the Field of Application Report and your Building Inspector with respect to whether the installation of the fully approved self-closing mechanism is required for your application.

NOTE:

This FD30 Pocket Door System has been fully tested in the UK by EXOVA Ltd, a laboratory-based testing company, and certified by International Fire Consultants Group Ltd to BS476: Part 22:1987. Field of Application Report no. PAR/10057/01 Revision B.

Important: Install at finished floor level.

*Special order item
